CBP1-381 插拔式接線端子台
插拔式接線端子台(CBP1-381系列)，PCB端子台，10A 300VAC，使用線徑26~16AWG，腳距為3.81mm pitch，電極P數為2P~16P，螺絲規格為M2鐵鍍鋅，接線簡單，台灣生產製造。
- 產品型號: CBP1-381
- 產品目錄: 插拔式端子台
產品特色
產品規格
| Model Number | CBP1-381 |
| Rating | 10A 300VAC |
| Contact | Phosphor Bronze, 0.3t, Nickel Plated |
| Product Materials | Polyamide 66, Green |
| Screw | M2.0, Steel, Zinc Plated |
| Cage clamp | Brass, 0.7t, Nickel Plated |
| Solder Pin | 0.8mm Brass, Tin Plated |
| Working Temperature | -40˚C to +105˚C |
| Insulation withstand Voltage | AC2000V/min |
| Insulation resistance | 500MΩ or more at DC 500V |
| Wire Range | 26~16 AWG |
| Max. Torque Value | 3Kg/cm |
| Number of Poles | 2P~16P |
| Pitch | 3.81mm |
| Place of Origin | Taiwan |
CBP1-381 系列外觀尺寸說明

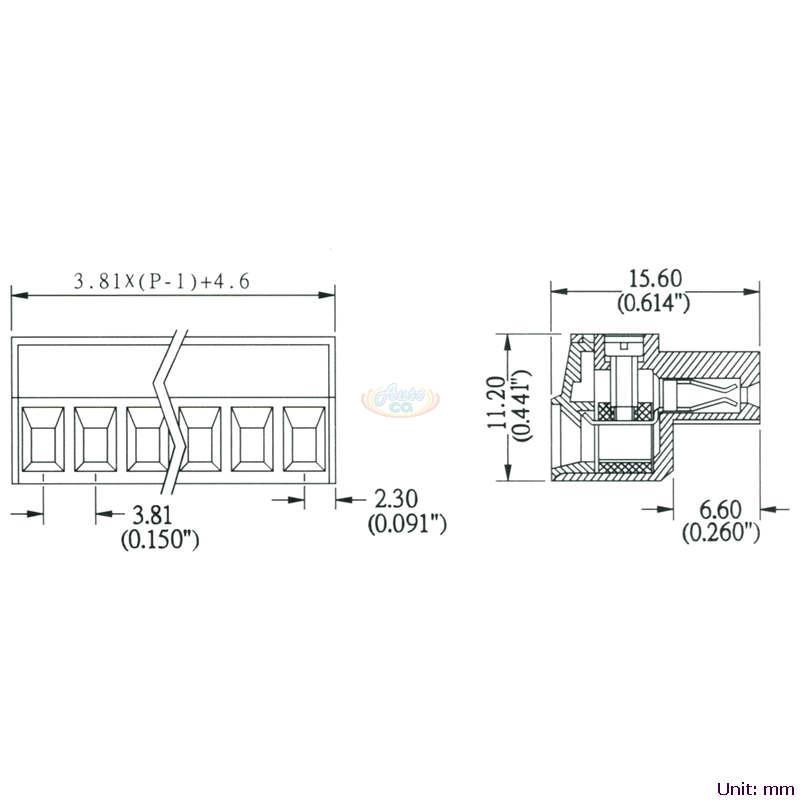

CBP1-381K
CBP1-381R
CBP1-381V
CBP1-381AK
CBP1-381AR
CBP1-381AV
