CBP10 柵欄式接線端子台


柵欄式接線端子台(CBP10系列),PCB端子台,15A 300VAC,使用線徑22~12AWG,腳距為10mm pitch,電極P數為2P~28P,螺絲規格為M3鐵鍍鎳,接線簡單明瞭,台灣生產製造。

  • Rating: 15A 300VAC
  • Pitch: 10mm
  • Number of Poles: 2P~28P


產品特色


  • 台灣生產製造

產品規格


Product Type Barrier Strip
Model Number CBP10
Rating 15A 300VAC
Terminal Brass, 0.8t, Tin Plated
Product Materials Polyamide 66, Black
Screw Steel, M3, Nickel Plated
Working Temperature -40˚C to +105˚C
Insulation withstand Voltage AC2000V at 1 min
Insulation resistance 500MΩ or more at DC 500V
Wire Range 22~12 AWG
Max. Torque Value 10Kg/cm
Number of Poles 2P~28P
Pitch 10mm
Place of Origin Taiwan

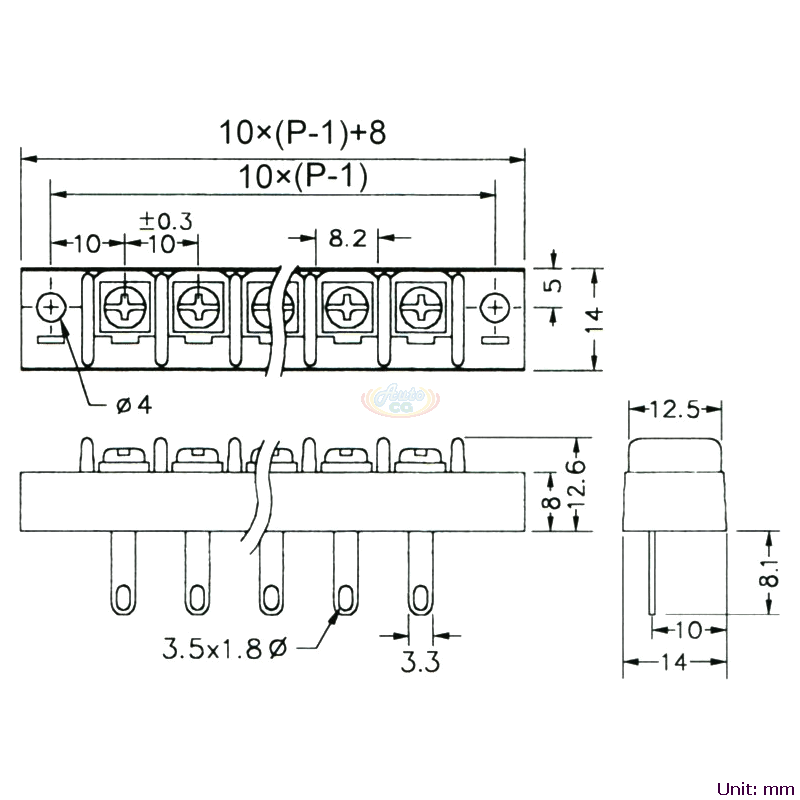

CBP10 系列外觀尺寸說明

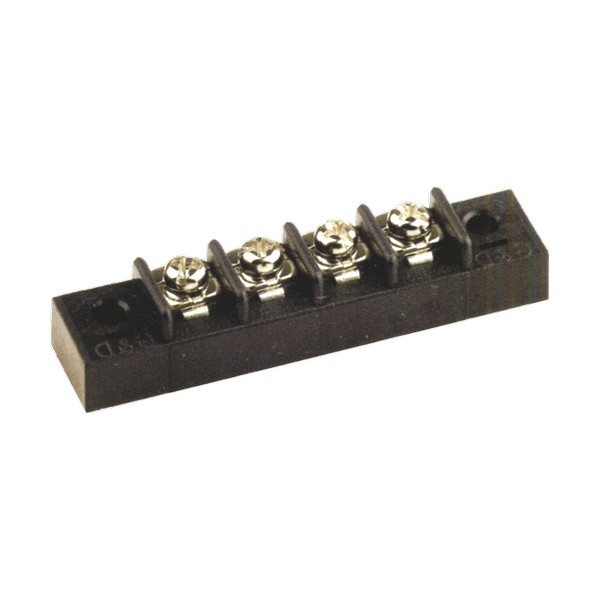

CBP10-01
CBP10-02
CBP10-03

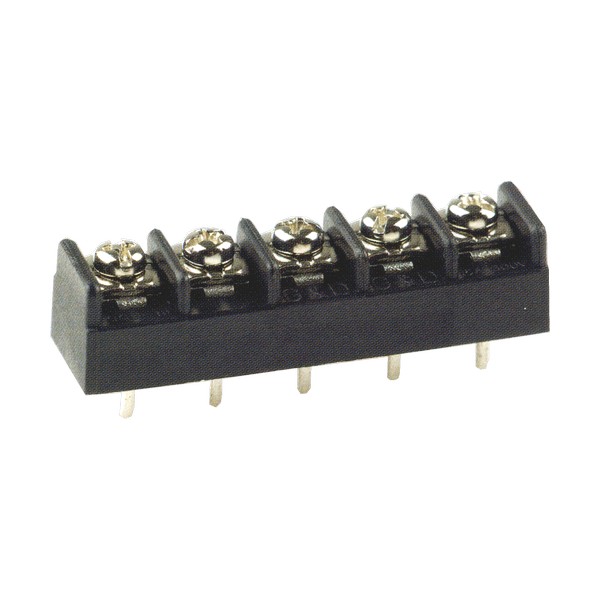

CBP10-04
CBP10-05
CBP10-07
CBP10-08
