CBP20 Barrier Strip Terminal Blocks

CBP20-01 CBP20-02 CBP20-03 CBP20-04 CBP20-05 CBP20-06 CBP20-07

CBP20 Series PCB Terminal Blocks

CBP20 Series Barrier Strip Terminal Blocks, 9.5mm pitch, 15A 300VAC, Accepts wire range 22~12 AWG, Cover Available, 2- to 36-Pole Single row PCB Terminal Strip.

  • Rating: 15A 300VAC
  • Pitch: 9.5mm
  • Cover Available
Model Number: CBP20 Category: Barrier Strip Terminal Blocks Tags: Barrier Strip Terminal Blocks
Product Specifications
CBP20 Barrier Strip Terminal Blocks Series
Product Type Barrier Strip
Model Number CBP20
Rating 15A 300VAC
Terminal Brass, 0.8t, Tin Plated
Body Material Polyamide 66, Black
Screw Steel, M3.5, Nickel Plated
Working Temperature -40˚C to +105˚C
Insulation withstand Voltage AC2000V at 1 min
Insulation resistance 500MΩ or more at DC 500V
Wire Range 22~12 AWG
Max. Torque Value 12Kg/cm
Poles 2P~32P
Pitch 9.5mm
- Cover Available
Place of Origin Taiwan

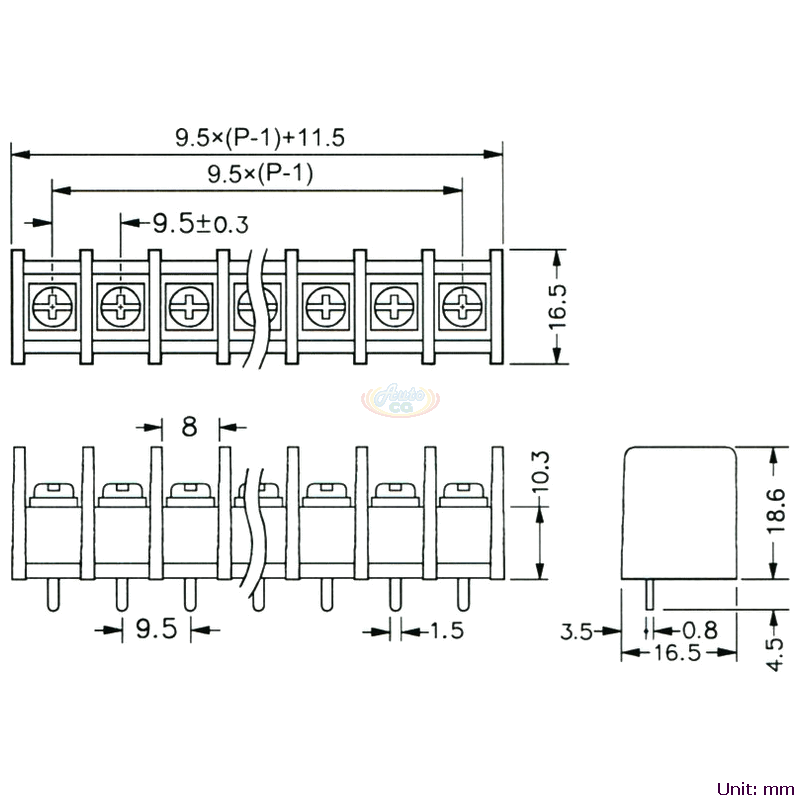

CBP20 Series Dimensional Drawing
CBP20-01 Barrier Strip Terminal Blocks
CBP20-01
CBP20-01 Dimensional
CBP20-02 Barrier Strip Terminal Blocks
CBP20-02
CBP20-02 Dimensional
CBP20-03 Barrier Strip Terminal Blocks
CBP20-03
CBP20-03 Dimensional
CBP20-04 Barrier Strip Terminal Blocks
CBP20-04
CBP20-04 Dimensional
CBP20-05 Barrier Strip Terminal Blocks
CBP20-05
CBP20-05 Dimensional
CBP20-06 Barrier Strip Terminal Blocks
CBP20-06
CBP20-06 Dimensional
CBP20-07 Barrier Strip Terminal Blocks
CBP20-07
CBP20-07 Dimensional
