CBP40 Barrier Strip Terminal Blocks

CBP40-01 CBP40-02 CBP40-03 CBP40-04 CBP40-05 CBP40-06 CBP40-07 CBP40-08

CBP40 Series PCB Terminal Blocks

CBP40 Series Barrier Strip Terminal Blocks, 10mm pitch, 20A 300VAC, Accepts wire range 22~12 AWG, Cover Available, 2- to 30-Pole Single row PCB Terminal Strip.

  • Rating: 20A 300VAC
  • Pitch: 10mm
  • Cover Available
Model Number: CBP40 Category: Barrier Strip Terminal Blocks Tags: Barrier Strip Terminal Blocks
Product Specifications
CBP40 Barrier Strip Terminal Blocks Series
Product Type Barrier Strip
Model Number CBP40
Rating 20A 300VAC
Terminal Brass, 0.8t, Tin Plated
Body Material Polyamide 66, Black
Screw Steel, M3.5, Nickel Plated
Working Temperature -40˚C to +105˚C
Insulation withstand Voltage AC2000V at 1 min
Insulation resistance 500MΩ or more at DC 500V
Wire Range 22~12 AWG
Max. Torque Value 12Kg/cm
Poles 2P~30P
Pitch 10mm
- Cover Available
Place of Origin Taiwan
CBP40 Series Dimensional Drawing
CBP40-01 Barrier Strip Terminal Blocks
CBP40-01
CBP40-01 Dimensional
CBP40-02 Barrier Strip Terminal Blocks

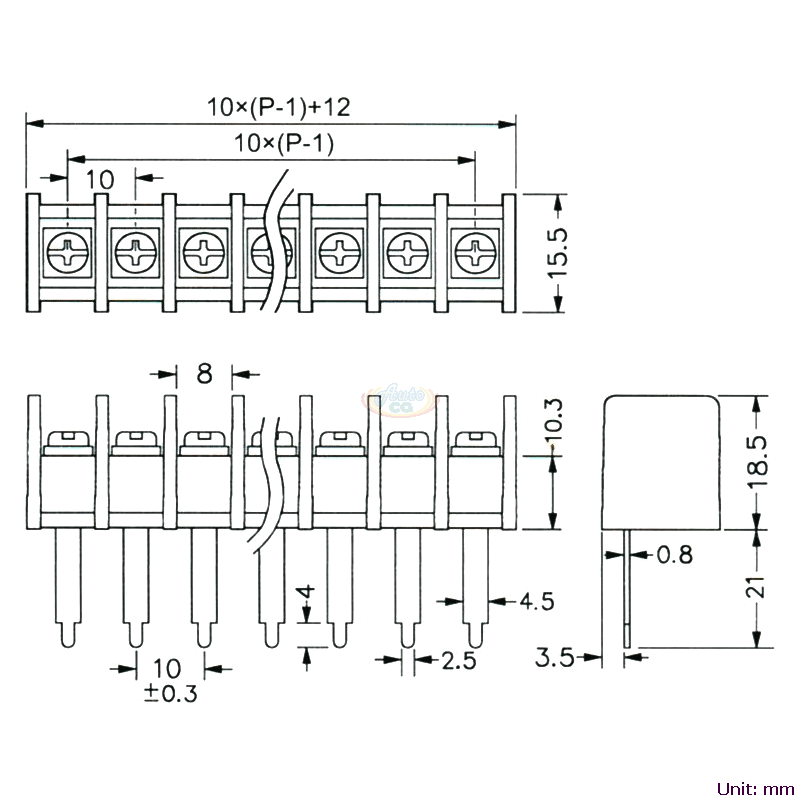

CBP40-02
CBP40-02 Dimensional
CBP40-03 Barrier Strip Terminal Blocks
CBP40-03
CBP40-03 Dimensional
CBP40-04 Barrier Strip Terminal Blocks
CBP40-04
CBP40-04 Dimensional
CBP40-05 Barrier Strip Terminal Blocks
CBP40-05
CBP40-05 Dimensional
CBP40-06 Barrier Strip Terminal Blocks
CBP40-06
CBP40-06 Dimensional
CBP40-07 Barrier Strip Terminal Blocks
CBP40-07
CBP40-07 Dimensional
CBP40-08 Barrier Strip Terminal Blocks
CBP40-08
CBP40-08 Dimensional
Catalog PDF Download Service
Please click an image thumbnail to view web catalog.

CBP40 Series
